U Shaped Metal Sheet Horseshoe Chain Mesh Belt For River Cleaning And Garbage Disposal

Name: U Shaped Metal Sheet Horseshoe Chain Mesh Belt For River Cleaning And Garbage Disposal
Brand: Xingkuan Tech
Price: 1 USD

China U Shaped Metal Sheet Horseshoe Chain Mesh Belt For River Cleaning And Garbage Disposal wholesale

Brand Name : Xingkuan Tech

Model Number : U-shaped metal sheet horseshoe chain mesh belt for River cleaning andGarbage disposal

Certification : Bv ,sgs , ce , Iso

Place of Origin : Hebei ,China

MOQ : 1 piece

Price : Negotiate

Payment Terms : L/C, T/T

Supply Ability : 5000SQM/Week

Delivery Time : 5-8 working days

Packaging Details : wooden case or as per reuqest

Item Name : U-shaped metal sheet horseshoe chain mesh belt for River cleaning andGarbage disposal

Material : C-1045 High Carbon Steel, Galvanized Low Carbon Steel,201 Stainless Steel, 304 Stainless Steel, 316 Stainless Steel

Rod diameter : 3,4,5,6,8 mm, etc

Rod Pitch : 25.4 mm, 31.75 mm, 38.1 mm, 50.8 mm, 63.5 mm, 76.2 mm.

Spiral pitch : 12.7-70mm

Belt width : 200 mm to 6,000 mm

Edge stype : clinched or welded

Applications : used on conveyor belt machine

Contact Now

U-shaped metal sheet horseshoe chain mesh belt for River cleaning and Garbage disposal
Descriptions :

Stainless Steel Horseshoe Chain Mesh Belt is made of pivots and metal sheets. The two ends of the pivot are welded. For some specifications , the ends of the pivot can also be seamed. The width of the mesh belt is determined by the mesh belt specifications and the number of odd holes. Flat Wire Belt requires very little maintenance work, and if used properly, it has a long lifespan. The materials of Flat Wire Belts are carbon steel, galvanized steel, 304 and 316 stainless steel.

Quick Detail :

U Shaped Metal Sheet Horseshoe Chain Mesh Belt For River Cleaning And Garbage Disposal

Product Name	Horseshoe chain mesh belt for conveyor machine
Certificate	SGS
Technique	Flat Wire Conveyor Belts
Material	201,304,316L,310S,410 etc
Specification	Rod diameter: 3 mm to 8mm. Spiral pitch: 12.7 mm to 70 mm. Rod pitch: 25.4 mm, 31.75 mm, 38.1 mm, 50.8 mm, 63.5 mm, 76.2 mm. Flat strip thickness:1.2mm,1.6mm,2mm Belt width: 200 mm to 6,000 mm.
Size	Max width can reach to 6000mm , belt length can be customized as your machine.
Other services	Special requirements can be customized

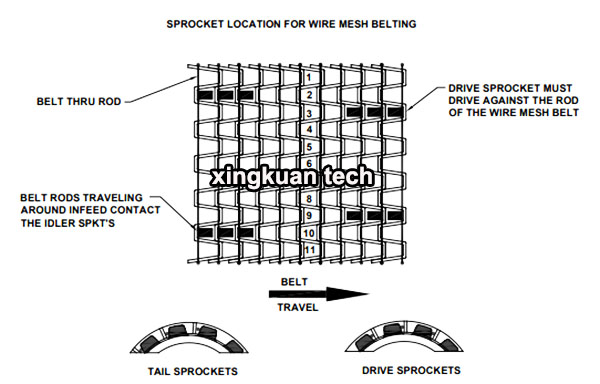

Proper sprocket location is essential for smooth belt operation. Sprocket teeth must always drive against the connector rods. This accomplished by locating the DRIVE sprockets so that the teeth are in the odd numbered openings and locating the tail sprockets so that the teeth are in the even numbered openings.

The drive shaft must be perpendicular to the belt and the drive shaft and infeed sprocket must be parallel. 6. After making sure the conveyor is cleared off and the drive sprockets are moving the belt in the correct direction, run the conveyor. Tension the belt with the infeed take-up.

The following hints on belt operation will help avoid any problems with your wire mesh belt conveyor:

A. Observe direction of belt travel as shown in the drawings provided in this manual.
B. Loading should be evenly distributed across the full width of the belt.
C. Unloading of the belt should be positive. Loads should not be held stationary while
the belt is running.
D. Belt should not be started or stopped when fully loaded.
E. Keep the belt and conveyor clean so that product cannot jam the belt or get
between the sprockets and belt
U Shaped Metal Sheet Horseshoe Chain Mesh Belt For River Cleaning And Garbage Disposal

U Shaped Metal Sheet Horseshoe Chain Mesh Belt For River Cleaning And Garbage Disposal

Applications :

Drying equipment
Bread production equipment
Cleaning equipment
Sorting equipment
Heat treat equipment

U Shaped Metal Sheet Horseshoe Chain Mesh Belt For River Cleaning And Garbage Disposal

Notice :

Please send to us about your request with specificaions description or drawings
Payment term: TT,LC ,or any insurance order way through other platform
Delivery time : it is very fast if it is standard size .
Sprockets and other drive components can also be supplied as per request. Please contact us for more detailed specifications regarding our flat wire belts and corresponding sprockets.

CUSTOMERIZED BELT , WE WELCOME YOU .

U Shaped Metal Sheet Horseshoe Chain Mesh Belt For River Cleaning And Garbage Disposal
